SS4200 stainless steel double-row angular contact ball bearing catalogue list

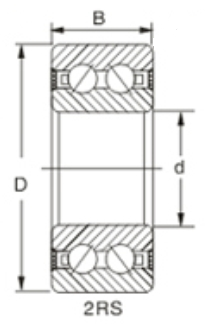

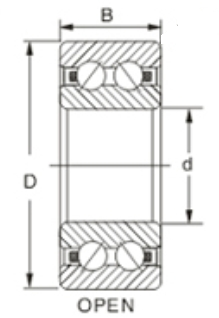

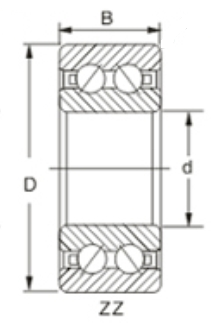

| Dimensions | Basic load ratings | Limiting Speed | |||||||
| SPEC.1 | d | D | B | r | Cr | Cor | Grease | Oil | Mass |
| SS4200 | 10 | 30 | 14 | 0.6 | 7.7 | 5.9 | 18000 | 22000 | 0.057 |
| SS4201 | 12 | 32 | 14 | 0.6 | 7.75 | 6.15 | 17000 | 20000 | 0.062 |
| SS4202 | 15 | 35 | 14 | 0.6 | 9.75 | 9 | 14000 | 17000 | 0.07 |
| SS4203 | 17 | 40 | 16 | 0.6 | 11.7 | 10.4 | 12000 | 15000 | 0.106 |
| SS4204 | 20 | 47 | 18 | 1 | 16.4 | 12.5 | 10000 | 13000 | 0.165 |
| SS4205 | 25 | 52 | 18 | 1 | 19 | 14.6 | 9000 | 11000 | 0.189 |
| SS4206 | 30 | 62 | 20 | 1 | 26 | 20.8 | 8000 | 9500 | 0.298 |
| SS4207 | 35 | 72 | 23 | 1.1 | 35.1 | 28.5 | 6700 | 8000 | 0.46 |
| SS4208 | 40 | 80 | 23 | 1.1 | 37.1 | 32.5 | 6000 | 7000 | 0.55 |
| SS4209 | 45 | 85 | 23 | 1.1 | 39 | 36 | 5600 | 6700 | 0.605 |
| SS4210 | 50 | 90 | 23 | 1.1 | 41 | 40 | 5000 | 6000 | 0.651 |
Findbearing.com supplies high quality SS4200 stainless steel double-row angular contact ball bearing.
