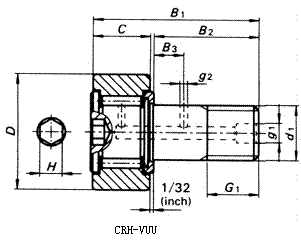

CRH-VBUU curve roller bearing catalogue list
| Dimension | Load Rating | ||||||||||||||
| SPEC.1 | d1 | D | C | B1 | B2 | g 1 | g 2 | G1 | B3 | H | r | Max tightening torque | C | Co | Limiting speed |
| CRH8-1VB | 6.35 | 12.7 | 9.525 | 26.194 | 15.875 | 6.35 | 3.175 | 0.397 | 0.4 | 480 | 550 | 15000 | |||
| CRH9VB | 6.35 | 14.288 | 9.525 | 26.194 | 15.875 | 6.35 | 3.175 | 0.397 | 0.4 | 480 | 550 | 15000 | |||
| CRH10-1VB | 7.938 | 15.875 | 11.112 | 30.956 | 19.05 | 7.938 | 3.175 | 0.397 | 1 | 650 | 870 | 11000 | |||
| CRH11VB | 7.938 | 17.462 | 11.112 | 30.956 | 19.05 | 7.938 | 3.175 | 0.397 | 1 | 650 | 870 | 11000 | |||
| CRH12VB | 11.112 | 19.05 | 12.7 | 35.719 | 22.225 | 4.762 | 2.381 | 9.525 | 6.35 | 4.762 | 0.794 | 2.9 | 890 | 1250 | 8000 |
| CRH14VB | 11.112 | 22.225 | 12.7 | 35.719 | 22.225 | 4.762 | 2.381 | 9.525 | 6.35 | 4.762 | 0.794 | 2.9 | 890 | 1250 | 8000 |
| CRH16VB | 15.875 | 25.4 | 15.875 | 42.069 | 25.4 | 4.762 | 2.381 | 12.7 | 6.35 | 6.35 | 1.191 | 7.5 | 1330 | 2310 | 6500 |
| CRH18VB | 15.875 | 28.575 | 15.875 | 42.069 | 25.4 | 4.762 | 2.381 | 12.7 | 6.35 | 6.35 | 1.588 | 7.5 | 1330 | 2310 | 6500 |
| CRH20VB | 19.05 | 31.75 | 19.05 | 51.594 | 31.75 | 4.762 | 2.381 | 15.875 | 7.938 | 6.35 | 1.588 | 14 | 2400 | 3230 | 5500 |
| CRH22VB | 19.05 | 34.925 | 19.05 | 51.594 | 31.75 | 4.762 | 2.381 | 15.875 | 7.938 | 6.35 | 1.588 | 14 | 2400 | 3230 | 5500 |
| CRH24VB | 22.225 | 38.1 | 22.225 | 61.119 | 38.1 | 4.762 | 2.381 | 19.05 | 9.525 | 7.938 | 1.588 | 17 | 2870 | 4090 | 4500 |
| CRH26VB | 22.225 | 41.275 | 22.225 | 61.119 | 38.1 | 4.762 | 2.381 | 19.05 | 9.525 | 7.938 | 1.588 | 17 | 2870 | 4090 | 4500 |
| CRH28VB | 25.4 | 44.45 | 25.4 | 70.6 | 44.45 | 4.762 | 2.381 | 22.225 | 11.112 | 7.938 | 1.588 | 26 | 3590 | 5670 | 4000 |
| CRH30VB | 25.4 | 47.625 | 25.4 | 70.6 | 44.45 | 4.762 | 2.381 | 22.225 | 11.112 | 7.938 | 1.588 | 26 | 3590 | 5670 | 4000 |
| CRH32VB | 28.575 | 50.8 | 31.75 | 63.344 | 50.8 | 4.762 | 3.175 | 25.4 | 12.7 | 11.112 | 1.588 | 32 | 4660 | 8220 | 3500 |
| CRH36VB | 28.575 | 57.15 | 31.75 | 63.344 | 50.8 | 4.762 | 3.175 | 25.4 | 12.7 | 11.112 | 1.588 | 32 | 4660 | 8220 | 3500 |
| CRH40VB | 31.75 | 63.5 | 38.1 | 96.044 | 57.15 | 4.762 | 3.175 | 28.575 | 14.288 | 12.7 | 2.388 | 40 | 6260 | 11900 | 3000 |
| CRH44VB | 31.75 | 69.8 | 38.1 | 96.044 | 57.15 | 4.762 | 3.175 | 28.575 | 14.288 | 12.7 | 2.388 | 40 | 6260 | 11900 | 3000 |
| CRH8-1VBUU | 6.35 | 12.7 | 9.525 | 26.194 | 15.875 | 6.35 | 3.175 | 0.397 | 0.4 | 480 | 550 | 15000 | |||
| CRH9VBUU | 6.35 | 14.288 | 9.525 | 26.194 | 15.875 | 6.35 | 3.175 | 0.397 | 0.4 | 480 | 550 | 15000 | |||
| CRH10-1VBUU | 7.938 | 15.875 | 11.112 | 30.956 | 19.05 | 7.938 | 3.175 | 0.397 | 1 | 650 | 870 | 11000 | |||
| CRH11VBUU | 7.938 | 17.462 | 11.112 | 30.956 | 19.05 | 7.938 | 3.175 | 0.397 | 1 | 650 | 870 | 11000 | |||
| CRH12VBUU | 11.112 | 19.05 | 12.7 | 35.719 | 22.225 | 4.762 | 2.381 | 9.525 | 6.35 | 4.762 | 0.794 | 2.9 | 890 | 1250 | 8000 |
| CRH14VBUU | 11.112 | 22.225 | 12.7 | 35.719 | 22.225 | 4.762 | 2.381 | 9.525 | 6.35 | 4.762 | 0.794 | 2.9 | 890 | 1250 | 8000 |
| CRH16VBUU | 15.875 | 25.4 | 15.875 | 42.069 | 25.4 | 4.762 | 2.381 | 12.7 | 6.35 | 6.35 | 1.191 | 7.5 | 1330 | 2310 | 6500 |
| CRH18VBUU | 15.875 | 28.575 | 15.875 | 42.069 | 25.4 | 4.762 | 2.381 | 12.7 | 6.35 | 6.35 | 1.588 | 7.5 | 1330 | 2310 | 6500 |
| CRH20VBUU | 19.05 | 31.75 | 19.05 | 51.594 | 31.75 | 4.762 | 2.381 | 15.875 | 7.938 | 6.35 | 1.588 | 14 | 2400 | 3230 | 5500 |
| CRH22VBUU | 19.05 | 34.925 | 19.05 | 51.594 | 31.75 | 4.762 | 2.381 | 15.875 | 7.938 | 6.35 | 1.588 | 14 | 2400 | 3230 | 5500 |
| CRH24VBUU | 22.225 | 38.1 | 22.225 | 61.119 | 38.1 | 4.762 | 2.381 | 19.05 | 9.525 | 7.938 | 1.588 | 17 | 2870 | 4090 | 4500 |
| CRH26VBUU | 22.225 | 41.275 | 22.225 | 61.119 | 38.1 | 4.762 | 2.381 | 19.05 | 9.525 | 7.938 | 1.588 | 17 | 2870 | 4090 | 4500 |
| CRH28VBUU | 25.4 | 44.45 | 25.4 | 70.6 | 44.45 | 4.762 | 2.381 | 22.225 | 11.112 | 7.938 | 1.588 | 26 | 3590 | 5670 | 4000 |
| CRH30VBUU | 25.4 | 47.625 | 25.4 | 70.6 | 44.45 | 4.762 | 2.381 | 22.225 | 11.112 | 7.938 | 1.588 | 26 | 3590 | 5670 | 4000 |
| CRH32VBUU | 28.575 | 50.8 | 31.75 | 63.344 | 50.8 | 4.762 | 3.175 | 25.4 | 12.7 | 11.112 | 1.588 | 32 | 4660 | 8220 | 3500 |
| CRH36VBUU | 28.575 | 57.15 | 31.75 | 63.344 | 50.8 | 4.762 | 3.175 | 25.4 | 12.7 | 11.112 | 1.588 | 32 | 4660 | 8220 | 3500 |
| CRH40VBUU | 31.75 | 63.5 | 38.1 | 96.044 | 57.15 | 4.762 | 3.175 | 28.575 | 14.288 | 12.7 | 2.388 | 40 | 6260 | 11900 | 3000 |
| CRH44VBUU | 31.75 | 69.8 | 38.1 | 96.044 | 57.15 | 4.762 | 3.175 | 28.575 | 14.288 | 12.7 | 2.388 | 40 | 6260 | 11900 | 3000 |
Findbearing.com supplies high quality CRH-VBUU curve roller bearing.
Note:
– Inch series.
– CRHVB type is the basic type.
– CRHVBUU is the sealed type.
