3300 Double row angular contact ball bearing Catalogue list
| Other Bearing NO. | Dimensions | Basic load ratings | Limiting Speed | |||||||||

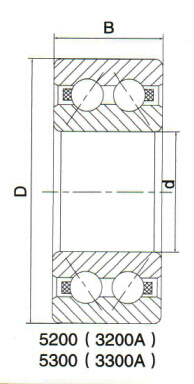

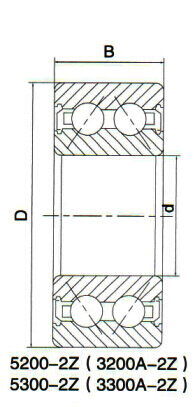

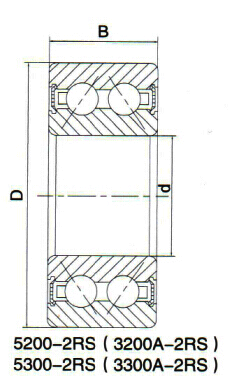

| SPEC.1 | SPEC.2 | SPEC.3 | d | D | B | r | a | Cr | Cor | Grease | Oil | Mass |
| 3302 | 3302-2Z | 3302-2RS | 15 | 42 | 19 | 1 | 26 | 14.2 | 11.8 | 9900 | 13000 | 0.127 |
| 3303 | 3303-2Z | 3303-2RS | 17 | 47 | 22.2 | 1 | 28.5 | 17.5 | 15 | 9000 | 12000 | 0.185 |
| 3304 | 3304-2Z | 3304-2RS | 20 | 52 | 22.2 | 1.1 | 32 | 21.1 | 18.6 | 8000 | 11000 | 0.221 |
| 3305 | 3305-2Z | 3305-2RS | 25 | 62 | 25.4 | 1.1 | 38 | 29.4 | 26.8 | 6700 | 8900 | 0.354 |
| 3306 | 3306-2Z | 3306-2RS | 30 | 72 | 30.2 | 1.1 | 44.5 | 39 | 36.5 | 5700 | 7600 | 0.55 |
| 3307 | 3307-2Z | 3307-2RS | 35 | 80 | 34.9 | 1.5 | 50 | 49.5 | 47.5 | 5000 | 6600 | 0.756 |
| 3308 | 3308-2Z | 3308-2RS | 40 | 90 | 36.5 | 1.5 | 55 | 54.5 | 57.5 | 4400 | 5900 | 1.03 |
| 3309 | 3309-2Z | 3309-2RS | 45 | 100 | 39.7 | 1.5 | 61 | 67.5 | 72.5 | 4000 | 5300 | 1.37 |
| 3310 | 3310-2Z | 3310-2RS | 50 | 110 | 44.4 | 2 | 67 | 81.5 | 89.5 | 3600 | 4800 | 1.98 |
| 3311 | 3311-2Z | 3311-2RS | 55 | 120 | 49.2 | 2 | 75 | 96.5 | 108 | 3300 | 4400 | 2.42 |
| 3312 | 3312-2Z | 3312-2RS | 60 | 130 | 54 | 2.1 | 82 | 113 | 128 | 3000 | 4000 | 3.07 |
| 3313 | 3313-2Z | 3313-2RS | 65 | 140 | 58.7 | 2.1 | 88.5 | 131 | 150 | 2800 | 3700 | 3.9 |
| 3314 | 3314-2Z | 3314-2RS | 70 | 150 | 63.5 | 2.1 | 97 | 153 | 168 | 2600 | 3500 | 5.2 |
| 3315 | 3315-2Z | 3315-2RS | 75 | 160 | 68.3 | 2.1 | 104 | 172 | 191 | 2400 | 3200 | 6.3 |
| 3316 | 3316-2Z | 3316-2RS | 80 | 170 | 68.3 | 2.1 | 113.1 | 175 | 192 | 2400 | 3200 | 7.21 |
| 3317 | 3317-2Z | 3317-2RS | 85 | 180 | 73 | 2.1 | 188 | 190 | 210 | 2200 | 3300 | 8.30 |
| 3318 | 3318-2Z | 3318-2RS | 90 | 190 | 73 | 3 | 125.5 | 205 | 242 | 2100 | 2800 | 9.23 |
| 3319 | 3319-2Z | 3319-2RS | 95 | 200 | 77.8 | 3 | 132.2 | 218 | 270 | 2000 | 2600 | 10.9 |
| 3320 | 3320-2Z | 3320-2RS | 100 | 215 | 82.5 | 3 | 140.4 | 249 | 324 | 1800 | 2500 | 13.5 |
Findbearing.com supplies high quality cost rate 3300 series double row angular contact ball bearings.
– default nylon cage, steel cage can be used upon request.
– Stainless steel can be produced, (minimum order quantity required).
– Contact angle 30 degree.
